CE Certified Safety Light Barrier 12-24VADC IP67 Rated for Harsh Environments

  • CE Certified Safety Light Barrier 12-24VADC IP67 Rated for Harsh Environments
  • CE Certified Safety Light Barrier 12-24VADC IP67 Rated for Harsh Environments
  • CE Certified Safety Light Barrier 12-24VADC IP67 Rated for Harsh Environments
원래 장소 중국
브랜드 이름 JUTAI
인증 CE
모델 번호 CL20-8L
최소 주문 수량 1
가격 negotiable
포장 세부 사항 만화
배달 시간 5-8 근무일
지불 조건 T/T, L/C, D/A, D/P, Western Union, PayPal ,, MoneyGram, Alipay
공급 능력 한 달에 1000 조각

무료샘플과 쿠폰을 위해 나와 연락하세요.

WhatsApp:0086 18588475571

위챗: 0086 18588475571

스카이프: sales10@aixton.com

만약 당신이 어떠한 관심도 가지면, 우리가 24 시간 온라인 도움말을 제공합니다.

x
제품 상세 정보
IP 등급 IP67 기능 블랭킹
감지 거리 8m 재료 알루미늄 합금
특징 내식성 전력 전압 DC12-24V
작동 온도 -20 ~ 60 ℃ 작동 전류 <50ma>
산출 아니오/Nc, COM 작업 전류 <20mA@DC12V
사양 2000*21*15mm
강조하다

CE certified safety light barrier

,

IP67 rated light curtain

,

12-24VADC safety light barrier
메시지를 남겨주세요
제품 설명




Product Description

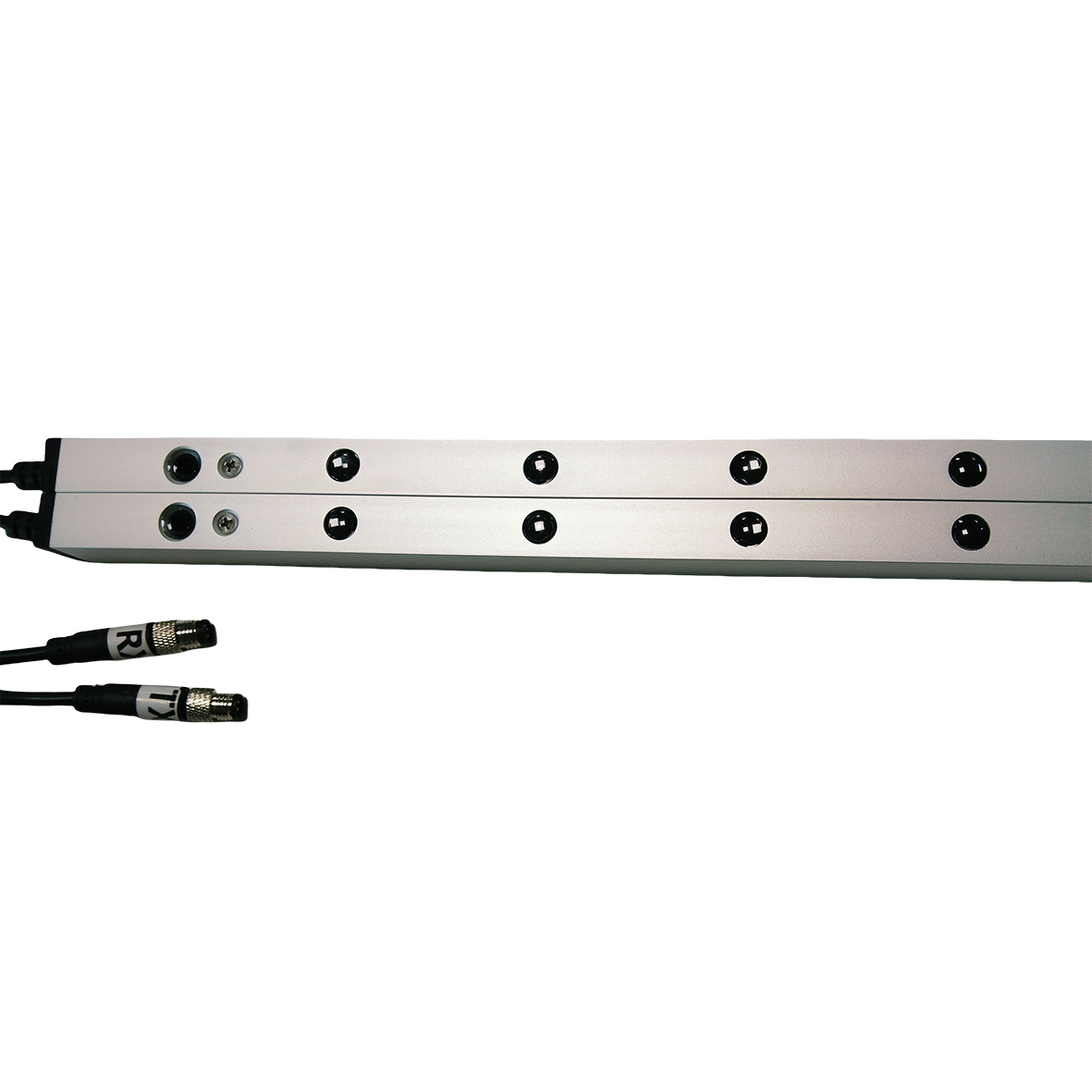

CE Certified Safety Light Barrier 12-24VADC IP67 Rated for Harsh Environments 0



Shenzhen JUTAI IP67 Waterproof Safety Light Curtain Sensor: The Reliable Safety Solution for Industrial Operations

Shenzhen JUTAI Communication Co., Ltd. proudly introduces its IP67 Waterproof Safety Light Curtain Sensor—a rugged, high-performance safety device engineered to thrive in challenging industrial environments where dust, moisture, and extreme temperatures are constant hurdles. Boasting top-tier IP67 waterproof and dustproof certification, this sensor delivers uninterrupted reliability across a wide range of scenarios: from busy manufacturing facilities and high-volume warehouses to sub-zero cold storage units and fast-paced automated production lines. It has become an essential safety component for modern industrial safety management systems.

10 Tailored Models to Meet Diverse Industrial Needs

To address the varied safety requirements of different industrial sites, we have developed 10 unique models, each with adjustable beam counts and lengths to perfectly suit specific application demands. Below is a detailed overview of the key specifications for each model:
Model Length Beam Quantity Detection Range
CL05 - 4L 500mm 4 beams Up to 8 meters*
CL05 - 8L 500mm 8 beams Up to 8 meters*
CL10 - 8L 1000mm 8 beams Up to 8 meters*
CL10 - 16L 1000mm 16 beams Up to 8 meters*
CL15 - 8L 1500mm 8 beams Up to 8 meters*
CL15 - 16L 1500mm 16 beams Up to 8 meters*
CL20 - 8L 2000mm 8 beams Up to 8 meters*
CL20 - 16L 2000mm 16 beams Up to 8 meters*
CL25 - 8L 2500mm 8 beams Up to 8 meters*
CL25 - 16L 2500mm 16 beams Up to 8 meters*
Note: The actual detection range may be affected by environmental factors (such as dust and humidity) and the number of beams.

Unique Advantages That Make It Stand Out

IP67 Protection and Durable Construction

This sensor is enclosed in a fully sealed, high-strength aluminum alloy housing, which effectively resists water jets and dust intrusion—making it ideal for wet or dusty environments like food processing plants. It maintains stable performance even in extreme temperature conditions, ranging from as low as -25°C (ideal for cold storage) to as high as +75°C, and can adapt to both indoor and outdoor harsh settings.

Two Operational Modes for Versatile Use

  • Blanking Mode: Specifically designed for door gap installations. During the door closing process, it monitors each beam individually. If an obstacle blocks any beam, the door will immediately reverse to prevent damage or injury.
  • Normal Mode: When mounted on the sides of the door, any interruption to the light beams will trigger an immediate door-opening signal, ensuring maximum safety for workers and equipment.

Accurate Detection and Rapid Response

With a beam spacing of 100mm, this sensor can accurately detect small obstacles, minimizing the risk of accidents in busy industrial areas. Its ultra-fast response time (≤20ms) allows it to keep up with high-speed workflows, which is crucial for automated production lines and fast-moving machinery.

Energy Efficiency and Customization Options

With a power consumption of only ≤4W, this sensor helps businesses reduce long-term operational costs. Additionally, you can choose between 4 and 16 beams to match the exact detection area requirements of your industrial setup, avoiding unnecessary resource waste.

Comprehensive Technical Specifications

Parameter Details
Product Type Safety Light Curtain Sensor
Waterproof & Dustproof Rating IP67 (fully dustproof and waterproof; suitable for moist and harsh environments)
Working Voltage 24V DC ± 10%
Power Consumption ≤ 4W
Response Time ≤ 20 ms
Beam Count (e.g., CL10-8L) 8 beams
Detection Range Up to 8 meters (influenced by the environment and the number of beams)
Beam Spacing 100mm
Operating Temperature -25°C to +75°C
Relative Humidity 95% (non-condensing)
Housing Material High-impact aluminum alloy
Output Type NPN or PNP (optional, based on customer requirements)
Detection Principle Light-based (triggers a response when an obstacle blocks the light beams)
Mounting Adjustable bracket (easy to install and align for precise positioning)
Safety Certification CE Certified (Certificate No.: CTC142H1007801SC)

Key Applications and Practical Benefits

Industrial Door Safety Applications

  • Rolling Doors: Widely used in warehouses and factories for quick access. It detects obstructions during the door closing process and reopens the door to avoid collisions with goods or workers.
  • Sectional Doors: Protects vertically opening doors (used for heavy machinery entry) by detecting people or objects in the door’s path, preventing crushing hazards.
  • High-Speed Doors: Perfect for cold storage facilities, pharmaceutical plants, and food processing factories. If the light beams are blocked while the door is closing, it stops and reopens the door, maintaining temperature control and ensuring safety.
  • Foldable Doors: Prevents injuries caused by fast-moving foldable doors in high-traffic, space-constrained areas (such as narrow factory corridors).
  • Automatic Sliding Doors: Detects obstacles or people in the door’s path and stops the door’s movement, avoiding collisions in industrial or commercial spaces.
  • Fire Doors: Ensures safe and unobstructed closing of fire doors in industrial sites by detecting barriers, protecting both personnel and vehicles during emergencies.
  • Cold Storage Doors: Operates reliably at -25°C, unaffected by moisture, condensation, or fog—playing a crucial role in maintaining the integrity of the cold chain and ensuring safety.

Other Industrial Safety Scenarios

  • Material Handling (Conveyors): Prevents collisions between workers, machinery, and moving conveyor parts, reducing workplace accidents.
  • Robotic Arms: Immediately stops fast-moving robotic arms when a person or object crosses the light beam, protecting workers from harm.
  • Automated Guided Vehicles (AGVs): Enables safe navigation of AGVs in dynamic warehouses and factories, avoiding obstacles and pedestrians.
  • Packaging Equipment: Stops high-speed packaging machines when obstructions are detected, protecting operators and preventing equipment damage.

Why Partner with Shenzhen JUTAI Comm Co., Ltd.?

  • Over 10 Years of Industry Experience: As a leading company in the sensor industry, we specialize in developing robust, efficient, and cost-effective safety solutions tailored to industrial needs.
  • Customized Support Services: We provide free on-site evaluations to assess your unique safety requirements and offer custom product solutions for specific scenarios.
  • 24/7 Customer Service: Our dedicated team is available around the clock to resolve technical issues, provide installation guidance, and address your inquiries promptly.

Get in Touch Today

Safeguard your industrial operations with Shenzhen JUTAI’s IP67 Waterproof Safety Light Curtain Sensor—your trusted partner for long-term safety and efficiency.

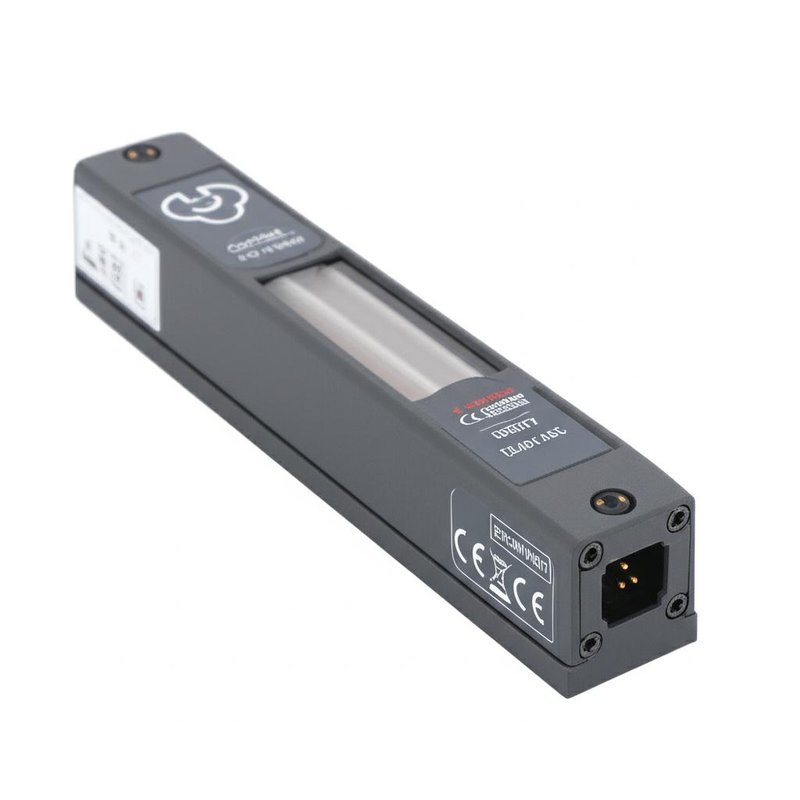

CE Certified Safety Light Barrier 12-24VADC IP67 Rated for Harsh Environments 1





CE Certified Safety Light Barrier 12-24VADC IP67 Rated for Harsh Environments 2





CE Certified Safety Light Barrier 12-24VADC IP67 Rated for Harsh Environments 3



CE Certified Safety Light Barrier 12-24VADC IP67 Rated for Harsh Environments 4

CE Certified Safety Light Barrier 12-24VADC IP67 Rated for Harsh Environments 5







CE Certified Safety Light Barrier 12-24VADC IP67 Rated for Harsh Environments 6

CE Certified Safety Light Barrier 12-24VADC IP67 Rated for Harsh Environments 7

CE Certified Safety Light Barrier 12-24VADC IP67 Rated for Harsh Environments 8

CE Certified Safety Light Barrier 12-24VADC IP67 Rated for Harsh Environments 9
CE Certified Safety Light Barrier 12-24VADC IP67 Rated for Harsh Environments 10
CE Certified Safety Light Barrier 12-24VADC IP67 Rated for Harsh Environments 11

CE Certified Safety Light Barrier 12-24VADC IP67 Rated for Harsh Environments 12

CE Certified Safety Light Barrier 12-24VADC IP67 Rated for Harsh Environments 13
CE Certified Safety Light Barrier 12-24VADC IP67 Rated for Harsh Environments 14

CE Certified Safety Light Barrier 12-24VADC IP67 Rated for Harsh Environments 15

CE Certified Safety Light Barrier 12-24VADC IP67 Rated for Harsh Environments 16
